When a diesel engine on a piece of equipment needs to be replaced, the first thing usually compared during procurement is rated power: whatever kilowatt rating the original engine has, the new engine is selected at the same rating, and it appears to match. However, installing a diesel engine back into equipment involves more than just power. Using the publicly available information on this site's Cummins 93 kW diesel engine as a reference, this article explains what the condition of "same power" can cover, what it cannot cover, and what interface and supporting information should also be checked before replacement.
What level of matching does the same power rating indicate?
The rated power of 93 kW is the power calibration value given for this engine in the information. The questions it can answer are very limited: the equipment's power demand roughly falls within this range. What it cannot answer is whether the machine's dimensions can fit into the original engine bay, whether the flywheel housing and output end can connect to the transmission components, whether the cooling system can dissipate the heat it generates, and whether the control system can recognize and drive it.
In other words, the same power rating only provides a preliminary answer to the question of "is there enough power"; the remaining questions are still open.
Which features in this engine's information affect replacement decisions?

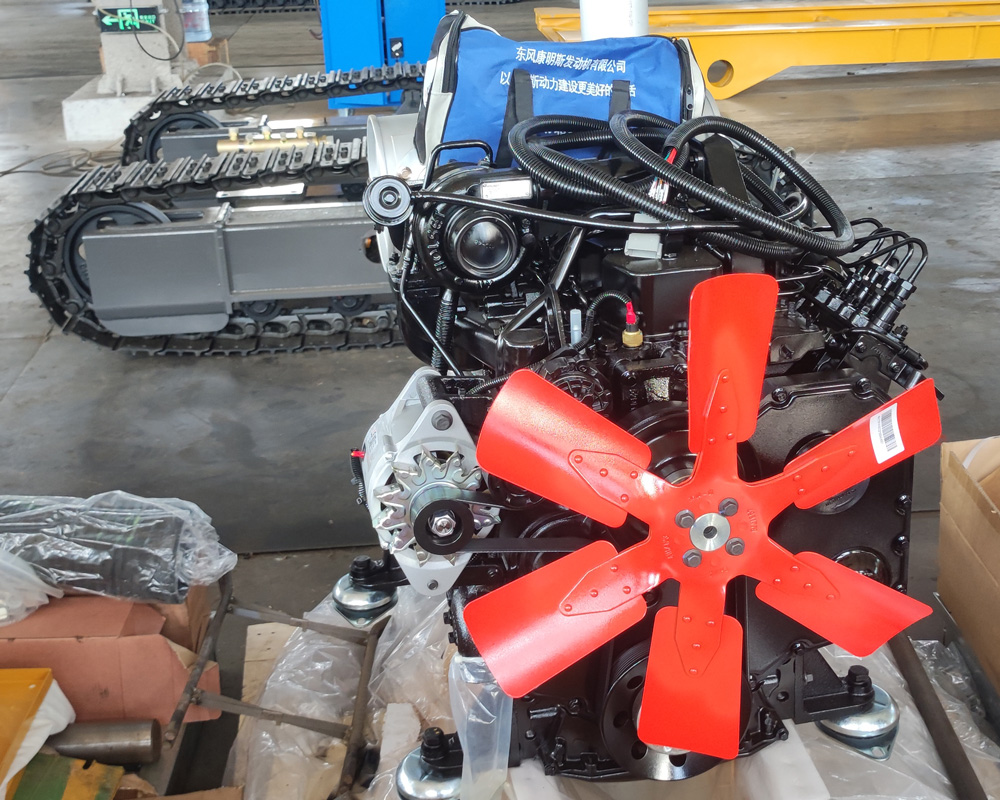

The Cummins 93 kW diesel engine uses turbocharging with air-to-air intercooling, a 4-valve structure, a long-stroke design, and an articulated piston with forced cooling and a reinforced cylinder block. These features are described in the information as design orientations for power output, low-speed torque, fuel economy, and operating stability. In a replacement scenario, they correspond to several matching points that require attention.
Air-to-air intercooling means the cooling system is more than just a set of radiators
Air-to-air intercooling relies on heat exchange between charge air and outside air, which means that in addition to the engine water jacket, the overall cooling circuit also includes the charge air path. During replacement, if only the rated power is checked, it is easy to overlook whether the original equipment's cooling arrangement is configured for air-to-air intercooling. Insufficient cooling capacity directly affects engine performance under high load, and the information also notes this: cooling conditions of different equipment affect the engine's actual performance and service life.
Turbocharging and a long stroke affect torque characteristics
The information describes the long stroke and 4-valve structure as conducive to improving effective power output and low-speed torque performance. For replacement, this means that even with the same rated power, engines with different design orientations may have different torque output in the low-speed range. The equipment's original transmission matching and load curve during operation need to be considered together with the replacement engine's torque characteristics; it cannot be assumed that they are interchangeable solely because the power values are equivalent.
Articulated piston and reinforced cylinder block point to load adaptability
The information mentions that the articulated piston with forced cooling can withstand higher mechanical and thermal loads, and that the reinforced cylinder block helps reduce operating noise and vibration. These are design features of the engine itself. In replacement, they indicate whether the original equipment's vibration isolation arrangement and engine mount connection method need to be checked as well. The information does not provide the installation dimensions or interface specifications of this engine, so it cannot be used to determine whether it can be directly installed into a specific piece of equipment.
Information that must be confirmed item by item before replacement
The selection notes in this site's information clearly state that if the engine is to be used to replace an original engine, the original model, installation interface, and related accessory configuration should be checked. Based on the matching conditions listed in the information, the items to be confirmed can be grouped into several categories.
| Check item | Why it needs confirmation |
|---|---|
| Original model and rated power | Confirm whether the power calibration of the replacement target is on the same basis as the 93 kW in the information |
| Installation space and engine mount connection | The information does not provide external dimensions; formal technical documentation is needed to confirm whether it can fit into the original engine bay |
| Output end and transmission connection method | Whether interfaces such as the flywheel and coupling match the original equipment's transmission components |
| Cooling system configuration | Air-to-air intercooling has corresponding requirements for the cooling circuit; the original equipment's cooling arrangement needs to be checked |
| Control system and accessories | The information notes that related accessory configuration should be checked; control interfaces need separate confirmation |
This table is not a replacement procedure; it illustrates what issues remain unresolved beyond "same power." Among them, installation dimensions, output end specifications, control interfaces, and similar items are not given specific values in the information provided here and must be obtained from the manufacturer or through formal technical confirmation.
When is same power closer to being replaceable?
If the original engine and the replacement engine not only have the same rated power but also have installation interfaces, cooling method, transmission connection, and control configuration that have been checked item by item and confirmed to be consistent, then "same power" may be one of the conditions for a valid replacement. Conversely, if any of the above items differs, concluding based solely on the same power is insufficient.
It should be noted that the information does not provide any replacement cases, on-site matching results, or actual operating data, so this article does not make a judgment on whether a specific piece of equipment can be replaced. Actual matching should be based on on-site equipment conditions and the results of formal technical confirmation.
Matters that also need to be confirmed with the manufacturer
- The engine's external dimensions, mounting hole positions, and engine mount type;
- Flywheel housing specifications and output end connection dimensions;
- Radiator and piping interface requirements for air-to-air intercooling;
- Control system interface type and whether a matching wiring harness is required;
- Whether differences in low-speed torque characteristics between the original engine and the replacement engine affect equipment operation.
These items are not supported by specific values in the existing information and should be raised with the supplier and confirmed in writing during the selection stage. Clarifying these questions before purchase is far more proactive than discovering after the equipment is shut down that it cannot be installed.
